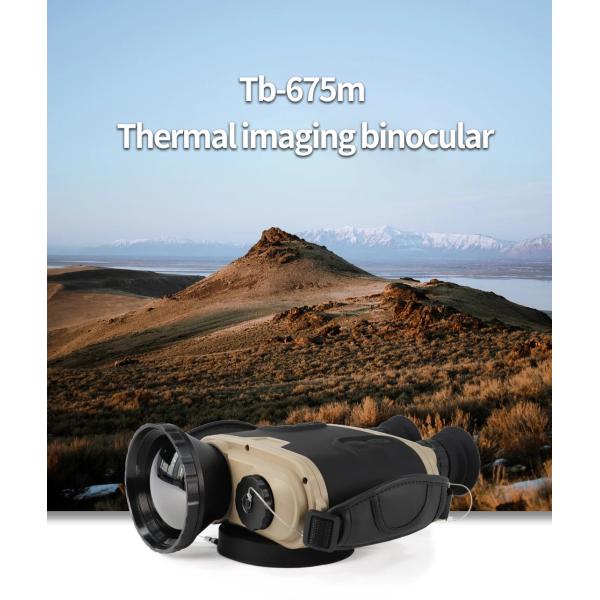

New Generation Thermal Imaging Binocular
UND-TB675 Infrared thermal binocular thermal imaging telescope night vision binocular
Uncooled VoX 640×512@12μm detector
White Hot / Black Hot / Pseudo-color
can work continuously for more than 6 hours
Products Description
The TB-675M New Generation Thermal Imaging Binocular is a top-of-the-line device that boasts a non-cooled infrared focal plane detector. With its high-sensitivity detector, this device offers exceptional imaging capabilities, providing clear thermal images, even in low light conditions.
One of the most notable features of the TB-675M is its high-resolution OLED display, which delivers crystal-clear visual feedback, enhancing your ability to identify potential problems and observe wildlife. Additionally, its low power design allows the device to operate efficiently, providing up to 6 hours of continuous use on a single battery.
The TB-675M New Generation Thermal Imaging Binocular is also designed for durability and ease of use. It has a robust construction that provides excellent protection against damage from falls or impacts, ensuring it is suitable for outdoor activities. Its comfortable grip design ensures that users can hold the binoculars for long periods without experiencing any fatigue.
Furthermore, the TB-675M is highly versatile and can be used in a wide range of applications, including surveillance, hunting, and outdoor adventures. Its superior imaging capabilities, low power consumption, and ergonomic design make it the perfect tool for capturing high-quality thermal images in any environment.
In conclusion, the TB-675M New Generation Thermal Imaging Binocular is the ultimate companion for clear vision. With its non-cooled infrared focal plane detector, high-resolution OLED display, low power design, robust construction, and comfortable grip, this device offers exceptional imaging capabilities while being easy to use and efficient. If you want to ensure that you have the clearest vision possible during your next adventure, look no further than the TB-675M.
Technical Parameters
| SPECIFICATIONS |
| Infrared Thermal Imaging |
| Detector | Uncooled VoX 640×512@12μm |
| Working Band | 8~14μm |
| Frame Frequency | 50Hz |
| NETD | < 40mk |
| Lens System | f = 75mm (F 1.0) |
| FOV | 5.9°×4.7° |
| Focus Method | Automatic / manual focus setting |
| Digital Zoom | 1×~4× |
| Image Polarity | White Hot / Black Hot / Pseudo-color |
| Display Control | Brightness / contrast / automatic mode |
| Image Processing | Digital filtering / detail enhancement |
| Inhomogeneous Correction | Shutter, scene correction |
| Display Type | 1024×768 OLED |
| Observation Distance |
| Human Target (1.7m×0.5m) | Detection: 4 km; Identification: 1.2km |
| Vehicle Target (2.3m×2.3m.) | Detection: 6.5km; Identification: 2.5km |
| *Test Conditions: Atmospheric Visibility 23km, Ambient Temperature 20℃ |
| Photo and Video Recording Function and Storage (Optional) |
| Photo Format | JPEG |
| Video Format | MPEG4 |
| Storage and Output | Built-in 32G USB2.0 Interface output |
| Power Parameters |
| Battery Type | 1 section 26650 rechargeable lithium battery 3.7V@5000mAH |
| Operating Voltage | DC: +2.8V~+5.0V |
| Power Dissipation | ~3.0W |
| Continuous Working Hours | 6 h |
| Environmental Physical Parameters |
| Waterproof and Dustproof Grade | IP66 |
| Salt and Atmosphere | Conform to GJB150.11A-2009 standard |
| Anti-vibration | Conform to GJB150.9A-2009 standard |
| Impact Resistance | Conform to GJB150.18A-2009 standard |
| Hot and Humid | Conform to GJB150.16A-2009 standard |
| Storage Temperature | -40°C~+70°C |
| Operating Temperature | -30°C~+60°C |
| Weight | ≤1.2kg (with battery) |
| Dimension(mm) | 220×170×85 |
